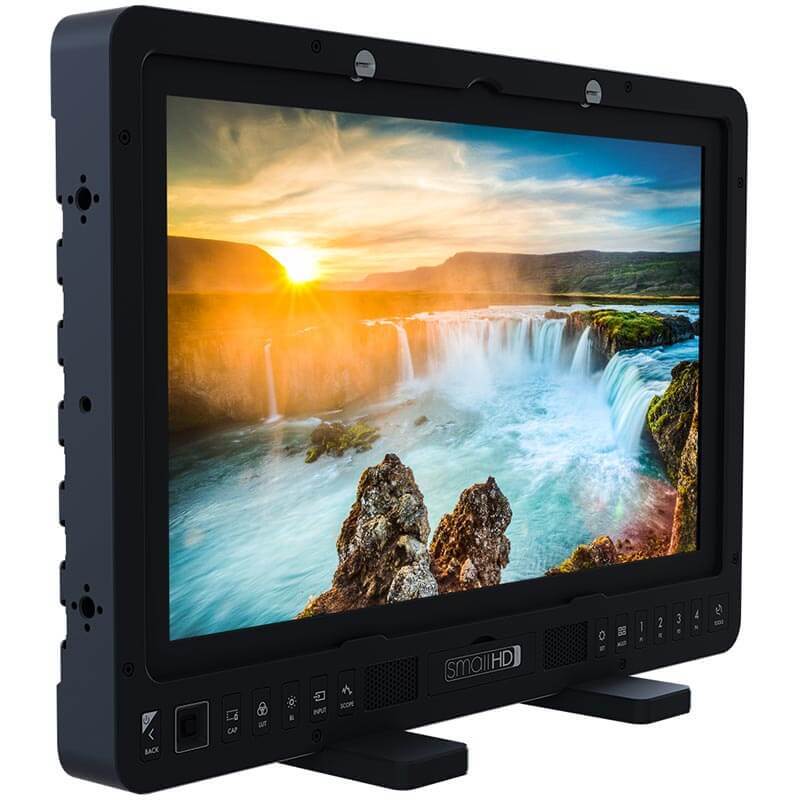

SmallHD 1703 P3X Monitor
Inventory
1 Available
The SmallHD 1703 P3X Monitor offers a stunning 17-inch Full HD display with a resolution of 1920x1080 and an impressive brightness of 900 nits. Known for its incredible color accuracy and daylight viewability, this monitor rivals OLED with its 100% DCI-P3 color gamut and 1400:1 contrast ratio. Built with a rugged anodized aluminum chassis and four-sided rubber impact protection, it is designed for durability, especially for on-location shoots.
The monitor comes equipped with dual SDI and HDMI inputs and outputs, along with multiple mounting options. The IPS LCD panel ensures 178-degree viewing angles both vertically and horizontally, providing clarity from almost any position. The 1703 P3X is powered via 12-34V DC input or AC power, with versatile power options including V-Mount plate.
Specifications
- Model: MON-1703-P3X
- Display Size: 17-inch
- Resolution: 1920 x 1080
- Brightness: 900 nits
- Contrast Ratio: 1400:1
- Color Gamut: 100% DCI-P3
- Viewing Angle: 178° vertical and horizontal
- Weight (Monitor): 193 oz (5.47 kg)
- Package Weight: 269.76 oz (7.65 kg)
- Dimensions: 17" W x 11.7" H x 2.5" D
- Compliance: FCC, IC, CE, RoHS
- Operating Temperature: 32°F to 100°F
- Storage Temperature: 0°F to 104°F
- Mounting Points: Multiple ¼”-20 & ⅜”-16 threads
- Power Input: AC 90-260V, XLR 4-pin Input 12-34VDC
- Screen Protection: Optional Acrylic Screen Protector
Display and Input/Output
- Panel Type: IPS LCD
- Aspect Ratio: 16:9
- Pixel Density: 133 ppi
- Backlight: Adjustable White LED
- Inputs: 2x SDI (BNC), 1x HDMI
- Outputs: 2x SDI (BNC), 1x HDMI
- Audio I/O: HDMI & SDI (Headphone output)
- Power Outputs: 1x Lemo Output 12VDC @ 4A Max
Software and Monitoring Features
- Pixel Zoom: 2x & 4x
- Focus Assist
- Peaking
- False Color (Rainbow & ARRI style)
- Zebra (Dual)
- Waveform (Luma & RGB)
- Vectorscope
- RGB Parade
- Histogram (Luma & RGB)
- Frame Guides with customizable aspect ratios
- Image Flip and Rotate (Manual/Automatic)
- Anamorphic De-Squeeze
- Cross Conversion: HDMI to SDI & SDI to HDMI
- Custom LUT Support (LUT Downstream)
- Image Capture (via SD Card)
Power and Mounting
- Power Input: AC 90-260V, XLR 4-pin 12-34VDC
- Battery Plates:V-Mount (optional)
- Mounting Options: Multiple ¼”-20 & ⅜”-16 threads, Cold Shoe Rails
- Power Consumption: Max: 48.9W, Min: 17.7W
